Android rendering PDF files - Local & Remote URL

Android provides the PdfRenderer class for rendering PDF files within an app. While it allows for PDF rendering, the implementation can be quite tedious process, as it requires managing tasks like opening the document, rendering individual pages, and handling scaling etc. For a quicker and more efficient solution, using a reliable third-party library is often a better option.

{getButton} $text={Download Code} $icon={download} $size={Button Size}

Today, in this article we'll see how to render PDF files using AndroidPdfViewer library. We'll cover how to load the PDF from local memory and from a network URL using the Retrofit library.

1. Adding the dependencies

Let's start by creating a new project in Android Studio and add the necessary dependencies.

1. In Android Studio, create a new project from File => New Project and choose Empty View Activity to create the project using Kotlin language.
2. Open the app's build.gradle and add the PDF library depency. We would also need to add Retrofit and Okhttp libraries to make the network call.
   build.gradle


   dependencies {
       // LiveData & ViewModels
       implementation "androidx.lifecycle:lifecycle-livedata-ktx:2.8.6"
       implementation "androidx.lifecycle:lifecycle-viewmodel-ktx:2.8.6"

       // PDF viewer
       implementation "com.github.barteksc:android-pdf-viewer:3.2.0-beta.1"

       // Retrofit
       implementation "com.squareup.okhttp3:logging-interceptor:5.0.0-alpha.14"
       implementation "com.squareup.retrofit2:converter-gson:2.11.0"
       implementation "com.squareup.retrofit2:retrofit:2.11.0"
       implementation "com.jakewharton.retrofit:retrofit2-kotlin-coroutines-adapter:0.9.2"}


2. Loading local PDF

The PDF library provides PDFView component that can be included in your xml layout. Loading the PDF from local storage is pretty straight forward.

First add the PDFView component to the layout file.

<com.github.barteksc.pdfviewer.PDFView
        android:id="@+id/pdfView"
        android:layout_width="match_parent"
        android:layout_height="match_parent"/>

And load the PDF using any of the methods below. You need to implement the file chooser intent to get the file Uri.

// provide the document to load the PDF
pdfView.fromUri(Uri)

// or use the other methods
pdfView.fromFile(File)

pdfView.fromBytes(byte[])

pdfView.fromStream(InputStream)

pdfView.fromSource(DocumentSource)

3. Loading PDF from Remote URL

The library doesn't offer a method to render the PDF from a remote URL directly. Instead the file has to be downloaded first and then rendered. To download the file, we are going to use Retrofit networking library. Below is the final project structure that we are going to create shortly.

3.1 Adding Retrofit Library

In this tutorial, we are going to keep very basic setup needed for Retrofit. You can further customise the library and use a dependency framework like Hilt for easier integration.{alertInfo}

1. Create a new package called utils and create a class named SingletonHolder.kt. Using this class, we can create the singleton instance of class objects.
   SingletonHolder.kt

   package info.androidhive.androidpdf.util

   open class SingletonHolder<out T: Any, in A>(creator: (A) -> T) {
       private var creator: ((A) -> T)? = creator
       @Volatile private var instance: T? = null

       fun getInstance(arg: A): T {
           val i = instance
           if (i != null) {
               return i
           }

           return synchronized(this) {
               val i2 = instance
               if (i2 != null) {
                   i2
               } else {
                   val created = creator!!(arg)
                   instance = created
                   creator = null
                   created
               }
           }
       }
   }

2. Create another package called remote and create NullOnEmptyConverterFactory.kt, Api.kt and ApiService.kt files under it.
   NullOnEmptyConverterFactory.kt


   package info.androidhive.androidpdf.remote

   import okhttp3.ResponseBody
   import retrofit2.Converter
   import retrofit2.Retrofit
   import java.lang.reflect.Type


   internal class NullOnEmptyConverterFactory private constructor() : Converter.Factory() {
       override fun responseBodyConverter(
           type: Type,
           annotations: Array<Annotation>,
           retrofit: Retrofit
       ): Converter<ResponseBody, *> {
           val delegate: Converter<ResponseBody, *> =
               retrofit.nextResponseBodyConverter<Any>(this, type, annotations)
           return Converter { body ->
               if (body.contentLength() == 0L) {
                   "{}" // Empty JSON element
               } else delegate.convert(body)
           }
       }

       companion object {
           fun create(): Converter.Factory {
               return NullOnEmptyConverterFactory()
           }
       }
   }


   In Api service file, we initialise OkHttp interceptor and Retrofit by providing necessary configuration.
   Api.kt


   package info.androidhive.androidpdf.remote

   import android.content.Context
   import com.google.gson.GsonBuilder
   import com.jakewharton.retrofit2.adapter.kotlin.coroutines.CoroutineCallAdapterFactory
   import info.androidhive.androidpdf.util.SingletonHolder
   import okhttp3.Interceptor
   import okhttp3.OkHttpClient
   import okhttp3.Request
   import okhttp3.logging.HttpLoggingInterceptor
   import retrofit2.Retrofit
   import retrofit2.converter.gson.GsonConverterFactory

   class Api(private val context: Context) {

       val apiService: ApiService by lazy {
           retrofit().create(ApiService::class.java)
       }

       private fun retrofit(): Retrofit {
           return Retrofit.Builder().addCallAdapterFactory(CoroutineCallAdapterFactory())
               .client(okhttpClient()).addConverterFactory(NullOnEmptyConverterFactory.create())
               .addConverterFactory(GsonConverterFactory.create(GsonBuilder().create()))
               .addCallAdapterFactory(CoroutineCallAdapterFactory()).baseUrl("https://mydomain.com")
               .build()
       }

       private fun okhttpClient(): OkHttpClient {
           val interceptor = HttpLoggingInterceptor()
           interceptor.setLevel(HttpLoggingInterceptor.Level.BODY)

           return OkHttpClient.Builder()
               .addInterceptor(Interceptor { chain: Interceptor.Chain ->
                   val request: Request = chain.request().newBuilder()
                       .build()

                   chain.proceed(request)
               }).build()
       }

       companion object : SingletonHolder<Api, Context>(::Api)
   }


   In ApiService file, we define all the http endpoints necessary for the app. For this example, we only need one method to download PDF from url.
   ApiService.kt


   package info.androidhive.androidpdf.remote

   import okhttp3.ResponseBody
   import retrofit2.Call
   import retrofit2.http.GET
   import retrofit2.http.Url

   interface ApiService {
       @GET
       fun getFile(@Url url: String?): Call<ResponseBody>
   }


3.2 Rendering PDF from URL

Now that we have the network layer ready, let's create an activity to display the PDF. This activity follows the basic MVVM structure that involves creating an activity, fragment, view model and a repository class.

1. Create a new package called pdf to add keep all the pdf releated files under one package
2. Right click on pdf package and select New => Activity => Fragment + ViewModel and name them as ViewPdfActivity, ViewPdfFragment, and ViewPdfViewModel.
3. Open AndroidManifest.xml and add INTERNET permission. Add configChanges attribute to ViewPdfActivity to avoid restarting the activity on device orientation changes.
   SingletonHolder.kt


   <uses-permission android:name="android.permission.INTERNET" />

   <activity
               android:name=".ui.pdf.ViewPdfActivity"
               android:configChanges="keyboard|keyboardHidden|orientation|screenSize|screenLayout|smallestScreenSize|uiMode"
               android:exported="false"
               android:parentActivityName=".ui.home.MainActivity" />


4. Create ViewPdfRepository.kt and add the below content. This repository takes care of making the HTTP call and fetches the pdf file content.
   ViewPdfRepository.kt


   package info.androidhive.androidpdf.ui.pdf

   import info.androidhive.androidpdf.remote.ApiService
   import okhttp3.ResponseBody
   import retrofit2.Response

   class ViewPdfRepository(private val api: ApiService) {
       fun getFile(url: String?): Response<ResponseBody>? {
           return try {
               api.getFile(url).execute()
           } catch (e: Exception) {
               null
           }
       }
   }


5. Create ViewPdfViewModel.kt and add the below code. This viewmodel talks to repository and gets the file data into a live data variable. This live data will be observed in the fragment.
   ViewPdfViewModel.kt


   package info.androidhive.androidpdf.ui.pdf

   import android.app.Application
   import androidx.lifecycle.AndroidViewModel
   import androidx.lifecycle.LiveData
   import androidx.lifecycle.MutableLiveData
   import androidx.lifecycle.viewModelScope
   import info.androidhive.androidpdf.remote.Api
   import info.androidhive.androidpdf.remote.ApiService
   import kotlinx.coroutines.Dispatchers
   import kotlinx.coroutines.launch
   import okhttp3.ResponseBody
   import retrofit2.Response

   class ViewPdfViewModel(application: Application) : AndroidViewModel(application) {
       private val apiService: ApiService = Api.getInstance(application).apiService
       private val repository: ViewPdfRepository = ViewPdfRepository(apiService)
       private val _fileStream: MutableLiveData<Response<ResponseBody>> = MutableLiveData()
       val fileStream: LiveData<Response<ResponseBody>?>
           get() = _fileStream

       fun getFile(url: String?) {
           viewModelScope.launch(Dispatchers.IO) {
               _fileStream.postValue(repository.getFile(url))
           }
       }
   }


6. Open the layout file of the fragment fragment_view_pdf.xml and add the PDFView component. We are also adding a progress indicator that will be displayed while the file is being downloaded.
   fragment_view_pdf.xml


   <?xml version="1.0" encoding="utf-8"?>
   <androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
       xmlns:app="http://schemas.android.com/apk/res-auto"
       xmlns:tools="http://schemas.android.com/tools"
       android:id="@+id/container"
       android:layout_width="match_parent"
       android:layout_height="match_parent"
       app:layout_behavior="@string/appbar_scrolling_view_behavior"
       tools:context=".ui.pdf.ViewPdfFragment">

       <com.github.barteksc.pdfviewer.PDFView
           android:id="@+id/pdf_viewer"
           android:layout_width="match_parent"
           android:layout_height="match_parent" />

       <com.google.android.material.progressindicator.LinearProgressIndicator
           android:id="@+id/progress_bar"
           android:layout_width="match_parent"
           android:layout_height="wrap_content"
           android:layout_marginHorizontal="50dp"
           android:indeterminate="true"
           app:layout_constraintBottom_toBottomOf="parent"
           app:layout_constraintEnd_toEndOf="parent"
           app:layout_constraintStart_toStartOf="parent"
           app:layout_constraintTop_toTopOf="parent" />

   </androidx.constraintlayout.widget.ConstraintLayout>


7. Finally open ViewPdfFragment.kt and do the below changes. Here we pass the PDF url to view model and display the PDF once it is downloaded.
   ViewPdfFragment.kt


   package info.androidhive.androidpdf.ui.pdf

   import androidx.fragment.app.viewModels
   import android.os.Bundle
   import androidx.fragment.app.Fragment
   import android.view.LayoutInflater
   import android.view.View
   import android.view.ViewGroup
   import android.widget.Toast

   import info.androidhive.androidpdf.R
   import info.androidhive.androidpdf.databinding.FragmentViewPdfBinding

   class ViewPdfFragment : Fragment() {
       private val binding by lazy {
           FragmentViewPdfBinding.inflate(layoutInflater)
       }
       private val viewModel: ViewPdfViewModel by viewModels()
       private var title: String? = null
       private var pdfUrl: String? = null

       companion object {
           fun newInstance(bundle: Bundle?) = ViewPdfFragment().apply {
               arguments = bundle
           }
       }

       override fun onCreate(savedInstanceState: Bundle?) {
           super.onCreate(savedInstanceState)
           arguments?.let {
               title = it.getString("title")
               pdfUrl = it.getString("pdf_url")
           }
       }

       private fun bindObservers() {
           viewModel.fileStream.observe(this) { response ->
               if (response?.isSuccessful == true) {
                   binding.apply {
                       binding.pdfViewer.fromStream(response.body()?.byteStream())
                           .onLoad {
                               progressBar.hide()
                           }
                           .onError {
                               progressBar.hide()
                           }
                           .load()
                   }
               } else {
                   binding.progressBar.hide()
                   Toast.makeText(activity, R.string.error_preview_pdf_file, Toast.LENGTH_SHORT).show()
               }
           }
       }

       override fun onCreateView(
           inflater: LayoutInflater, container: ViewGroup?,
           savedInstanceState: Bundle?
       ): View {
           return binding.root
       }

       override fun onViewCreated(view: View, savedInstanceState: Bundle?) {
           super.onViewCreated(view, savedInstanceState)
           bindObservers()

           // toolbar title
           activity?.title = title

           // fetch pdf from remote url
           viewModel.getFile(pdfUrl)
       }
   }

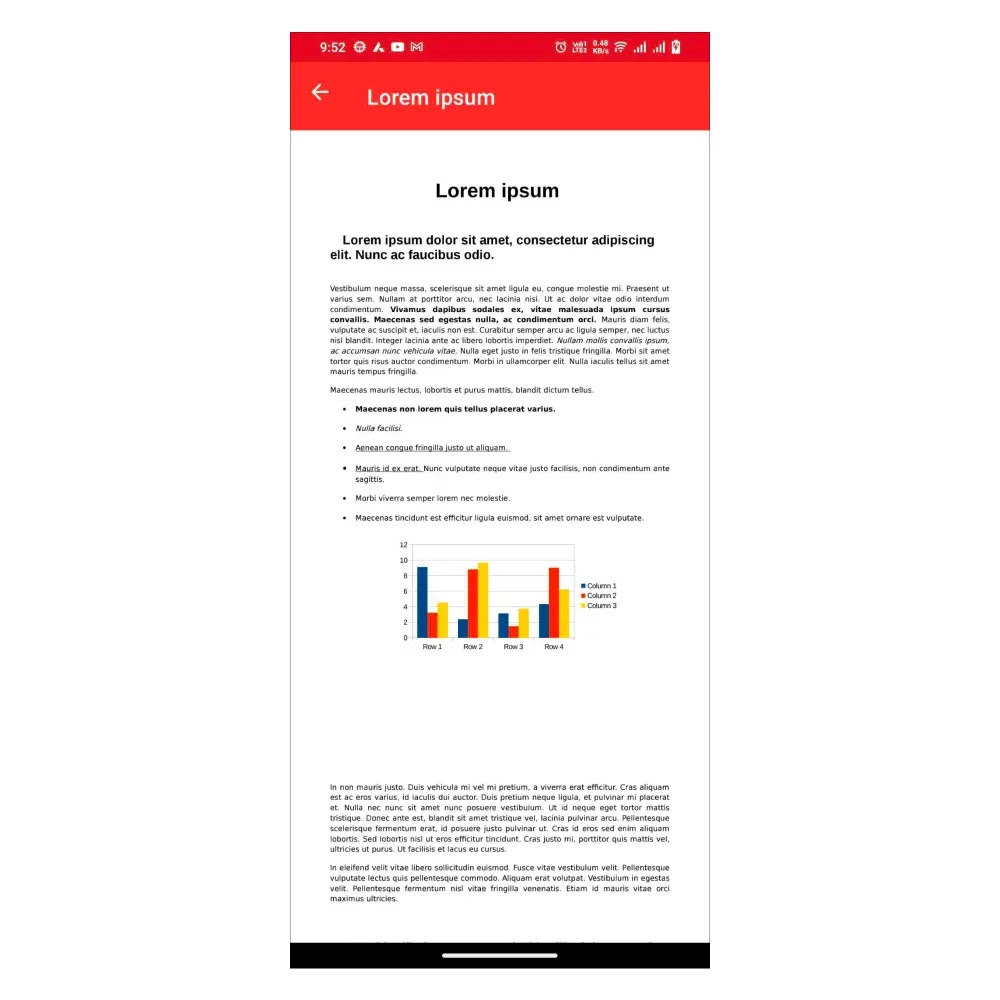

8. Now, to view the PDF, launch the pdf viewer activity by passing the PDF HTTP url.
   SingletonHolder.kt


   binding.btnSample1.setOnClickListener {
               openPdf(
                   "Lorem ipsum ", // pdf title
                   "https://firebasestorage.googleapis.com/v0/b/project-8525323942962534560.appspot.com/o/samples%2Fpdf%2Ffile-example_PDF_1MB.pdf?alt=media&token=ea88122f-0524-4022-b401-f8ec1035901f"
               )
           }


   // function to open pdf viewer activity
   private fun openPdf(title: String, url: String) {
           startActivity(Intent(this, ViewPdfActivity::class.java).apply {
               putExtra("title", title)
               putExtra("pdf_url", url)
           })
       }


I hope this article provided good insights into rendering PDF files on Android. You can refer the full code here.

Cheers!
Happy Coding 🤗
